8000 Cycles 51.2V Home Energy Storage System DIY KITS BMS Battery
Quick Detail:
· Floor Mounted Design
· Fast Charges and Discharges Are Possible
· With CAN/RS485 for BMS Communication
· Wide Charging Voltage Range (42-58.4V DC adjustable)
· Tailor-Made According to The Battery Size to Ensure Precise Fit
Specifications:
| PRODUCT PERFORMANCE | VP-280L |
| STANDARD VOLTAGE | 51.2V |
| RATED CAPACITY | 280AH |
| OPERATING VOLTAGE | 42V-58.4V |
| STANDARD CHARGING CURRENT | 100A/200A |
| MAXIMUM CHARGE/DISCHARGE CURRENT | 200A |
| OPERATING TEMPERATURE RANGE | 0-40℃(CHARGE) ~ 20-40℃(DISCHARGE) |
| STORAGE TEMPERATURE | -10℃-35℃(1MONTH) 25±2℃(3MONTH)65%±20%RH |
| CYCLE LIFE | 8000 CYCLES @25℃ 50A CHARGE AND DISCHARGE CURRENT 70%STANDARD CAPACITY 80%DOD |
| COMMUNICATION | CAN&RS485 |
| WATER PROOF GRADE | IP20 |
| HUMIDITY RANGE | 5~95% |
| NET SIZE | 828*415*267MM |
| NET WEIGHT | 113±3KG |
Description:

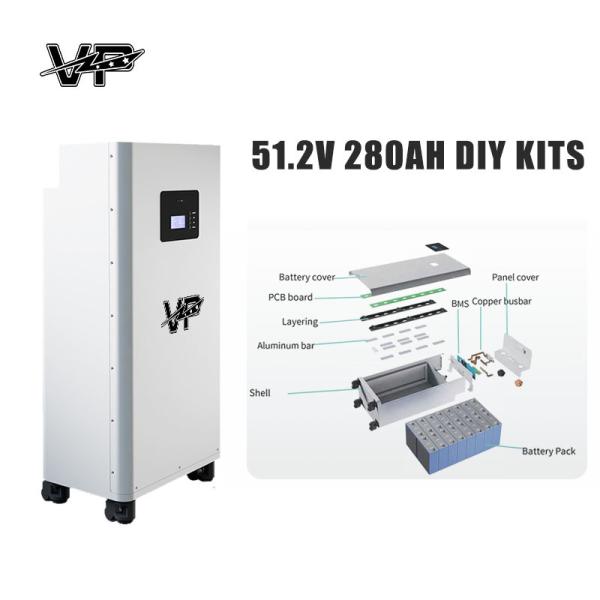

This 280L DIY kit 51.2V battery box (202Ah-304Ah) has flexible capacity and stable performance, uses high-quality lithium cells, and can achieve 8,000 cycles at 70% discharge depth. Integrated intelligent battery management system (BMS), equipped with RS485/CAN bus interface, and triggers emergency shutdown at millisecond speed in case of failure. The kit supports 200A continuous bidirectional current capability with pure sine wave output, which can perfectly drive high-power devices. The IP20 industrial protection grade housing can protect the battery cells from operating in an environment of -20°C to 40°C. Certified CE / IEC / UN38.3 / MSDS.
Notices:
1. Prior to first use, inspect the equipment for physical damage, electrolyte leakage, or other hazardous conditions. Any anomalies require immediate discontinuation of operation.
2. Do not mix batteries of different models/new and old batteries.
3. Working environment 0-40°C (charging), -20-40°C (discharging) (out of range triggers shutdown).
4. Immediately cut off the AC/DC switch when abnormal heating occurs.
5. Maintain 20-80% SoC for cycle life preservation.
Applications:
Applicable to : Energy self-sufficient residential units, Off-grid power systems, Critical load backup applications, Medical device power infrastructure, Remote workstation power solutions.
FAQ
Q1 : Are you a manufacturer or a trading company?
A1 : We are manufacturer.
Q2 : Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A2 : Yes, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q3 : Are your battery real capacity?
A3 : All of our battery cells with Grade A, 100% new and real capacity.
Q4 : Is the product original?
A4 : Yes,it is indeed 100% original and authentic, we never sell fake battery, honest is the best policy.
Q5 : How much for your products including shipping cost?
A5 : Different products have different prices, if you have any needs, please contact us.
If you have any other questions, please feel free to contact us. Welcome your inquiry .
